Plasdan Injection Technology

Plasdan designs and builds a family of injection units, both hydraulic and electric. All units use the same proven control technology used by other large injection molding machine builders.

Standard and optional control features for all injection units are as follows:

bulletEasy connection to existing injection molding machine
bulletStandard Industry Machine Components (available worldwide)
bulletTransfer from velocity mode to pressure mode on Time, Screw Position, or External Sensor (pressure transducer or otherwise)
bulletCushion monitoring (signal available for quality control)
bulletSequential valve gate control
bulletHot runner control
bulletIntegration of multiple injection units and / or rotary tables in one controller



Hydraulic Injection Units

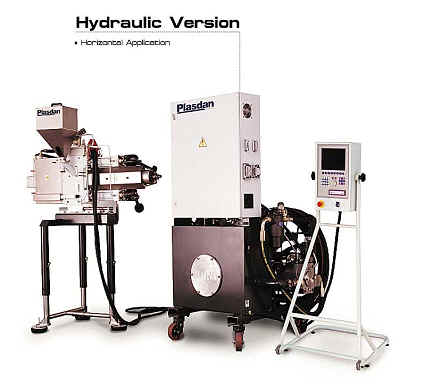

Example of a Hydraulic - Self-Contained Injection Unit

Our hydraulic units offer the best value. These well proven designs use industry standard components which are available worldwide. Our controller offers sophisticated control over the complete injection process. Custom control and software solutions are also available.

Key Benefits

bulletStandard Industry Components
bulletCost-Effective - turn your single shot machine into a multi-material workhorse
bulletHigh Precision and excellent repeatability
bulletFlexibility
bulletDurable - Low Maintenance
bulletServiced, Stocked and Customized in North America
bulletEasy Installation

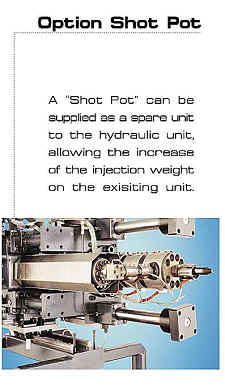

Shot-Pot Injection Units



As an option to our hydraulic units, we offer a "shot-pot" which allows up to 5 times more injection volume capacity as the corresponding reciprocating screw model. Here the standard unit acts as an extruder to fill the injection cylinder. Injection occurs via hydraulically powered piston (plunger). This provides large injection capacity in a very compact space. The unit can always be converted back to a standard reciprocating screw model.

Key Benefits

bulletIncreased injection volume - up to 5X more than corresponding standard unit
bulletCompact package for given shot capacity
bulletPrecise injection - no check ring
bulletFlexibility - convertible between "shot-pot" and conventional injection



Electric Injection Units

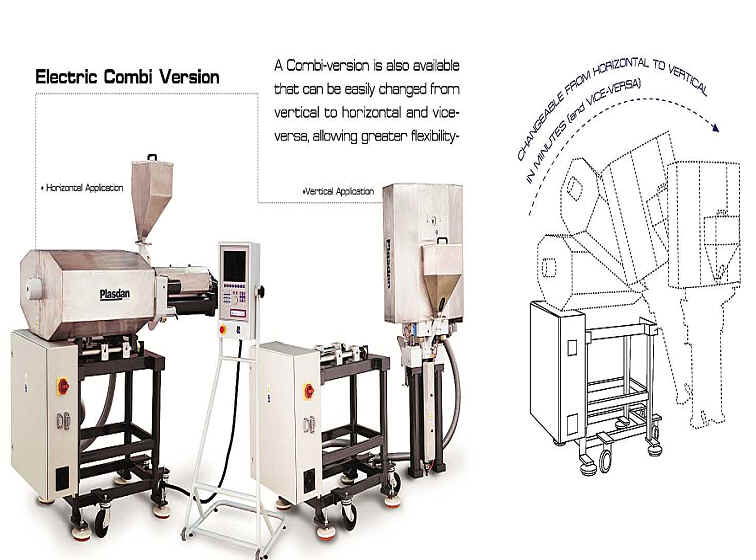

Example of an Electrical Injection Unit - able to mount both vertical and horizontal applications

Key Benefits - In Addition to our Hydraulic Injection Units

bulletQuiet Operation
bulletSmaller Package
bulletCleanliness - no hydraulic oil
bulletEnergy efficiency
bulletServiceability - standard components



Multiple Injection Unit Packages



Example of a double hydraulic injection unit,  mounted horizontally from the side ("L" configuration), turning a standard single barrel injection molding machine into a three-shot system. Also shown is a three station servo rotary table, and a three material injection mold. All device controls are integrated into the displayed controller (injection units, rotary table, mold safeties, valve gates, and hot runners).

Key Benefits - Lots of content in a small package

bulletFloor space
bulletIntegrated controls
bulletEconomics
bulletFlexibility
bulletModularity
bulletServiceability - standard components

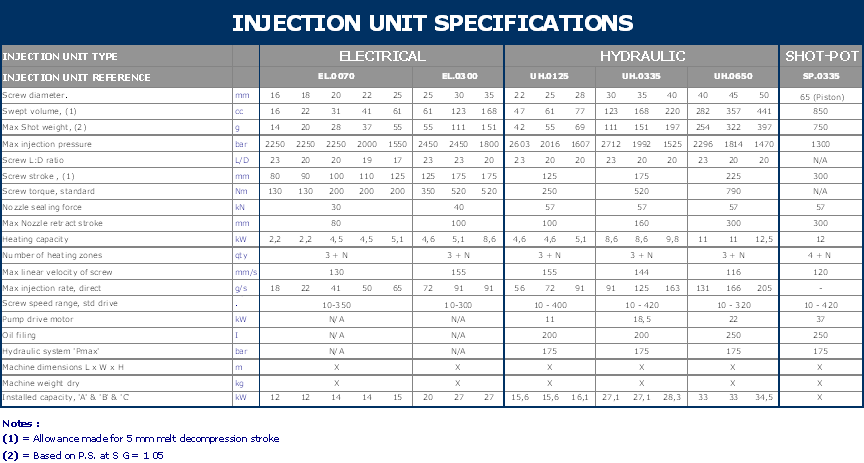

Standard Specifications

  (Click anywhere for .pdf version)

Also, We are willing and able to customize a solution to fit your needs... try us!
