Rotary Tables

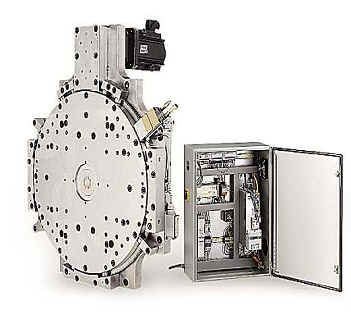

We offer fast, electric servo driven rotary tables - both vertical and horizontal axis.

	Electrical Servomotor for fast precise mold rotations
	Centering holes
	Cleanliness - no hydraulic oil
	Lock pin to ensure position before mold close
	Mounting bolt pattern and knock outs per customer request (SPI, Euromap, or custom)
	Same PLC and controls as our injection units (controls can be combined if both injection unit and rotary table are ordered from us).
	Water and Air connections on rear of unit.
	Can accommodate any rotary motion sequence (180º occilating, 180º contiuous, 120º continuous, etc.)
	Standard components and electronics (service parts available worldwide)

We welcome requests for special sizes and other requirements. Try us!
